    Atlona® 2 Channel Black Power Amplifier


    Model #:

    AT-HDR-CAT-4

    Model #: AT-HDR-CAT-4
    1410341
    Atlona
    $99,999.00

    At a Glance

    Product Dimensions 1.73"h x 8.64"w x 10"d

    Send a single 4K HDR source to four displays at distances up to 130' (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview
    4K HDR Support

    Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

    Sophisticated Integration Capabilities

    Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

    Unique Features

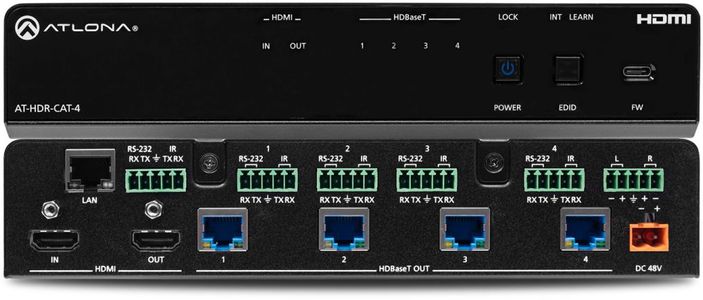

    The Atlona AT-HDR-CAT-4 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

    4K HDR Support

    4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.

    Long Distance Extension

    HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).

    CEC Display Control

    Send display on/off commands to the pass-through and receiver HDMI outputs using the power button, IP, or RS-232.

    Audio De-embedding

    De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system

    Introducing the AT-HDR-CAT-4

    The AT-HDR-CAT-4 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m).

    Setting up the AT-HDR-CAT series

    Learn how to set up and configure the AT-HDR-CAT series of 4K HDR HDMI to HDBaseT distribution amplifiers using the built-in web server.

    Long distance distribution for four displays

    The HDR-CAT-4 accepts an HDMI source and routes it to four HDBaseT outputs which carry 4K HDR content to AT-HDR-EX-70C-RX receivers at distances of up to 130 feet (40 meters). The receiver then provides an HDMI output to its connected display. HDMI pass-through allows the signal to be sent to a local display.

    Useful Documents
    Specifications

    General Specs

    Depth (in.)10
    Height (in.)1.73
    Width (in.)8.64
    Frequency Response20 Hz to 20 kHz, ± 0.5 dB
    Outdoor ApprovedNo
    Color Finish NameBlack
    Smart CompatibleNo
    Wifi CapableNo
    Bluetooth CapableNo
    Product Weight (lbs.)3.75
    Voltage100/240
    Amplifier Channels2
    Streaming CapableNo
