Atlona® 4K HDR HDMI Over HDBaseT TX/RX Kit

Product Overview

Supports HDR and 4K/60 4:4:4 video content.

The HDR-EX-70-2PS is cost-effective and ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70-2PS supports 4K HDR10 @ 60 Hz and Dolby Vision @ 30 Hz.

An innovative yet practical solution for 4K HDR over HDBaseT.

HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps – a significant challenge for extending signals over HDBaseT. The HDR-EX-70-2PS provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, the kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-2PS delivers a cost-effective solution for HDMI extension, with locally powered transmitter and receiver endpoints as well as surface mounting hardware for discreet installation.

The HDR-EX-70-2PS is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70-2PS includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Applications

Residential installations – The HDR-EX-70-2PS is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.

TV showrooms – The HDR-EX-70-2PS can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.

Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

Ideal for new and emerging 4K/UHD and HDR-capable sources and displays

Compatible with 4K HDR10 @ 60 Hz and Dolby® Vision™ @ 30 Hz

Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection

Allows protected content stream to pass between authenticated devices

HDBaseT extender kit for HDMI up to 230 feet (70 meters)

Extends HDMI up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K HDR using CAT6a/7 cable*

Uses easy-to-integrate category cable for low-cost, reliable system installation

* To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

Visually lossless compression

Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression with no latency

Innovative signal extension solution delivers very high, pristine image quality

Multi-channel audio compliant

Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®

Allows any multi-channel audio stream to be used within a professional audio system

Provides HDMI signal regeneration for source devices

Allows HDMI 1.2 sources such as cable television set-top boxes to be used in newer systems

Addresses the lack of support for the HDMI 1.3 clock stretching protocol required in HDBaseT extenders

HDBaseT link status testing

Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver

Provides real-time link status, plus detailed HDBaseT and HDMI signal information

Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality

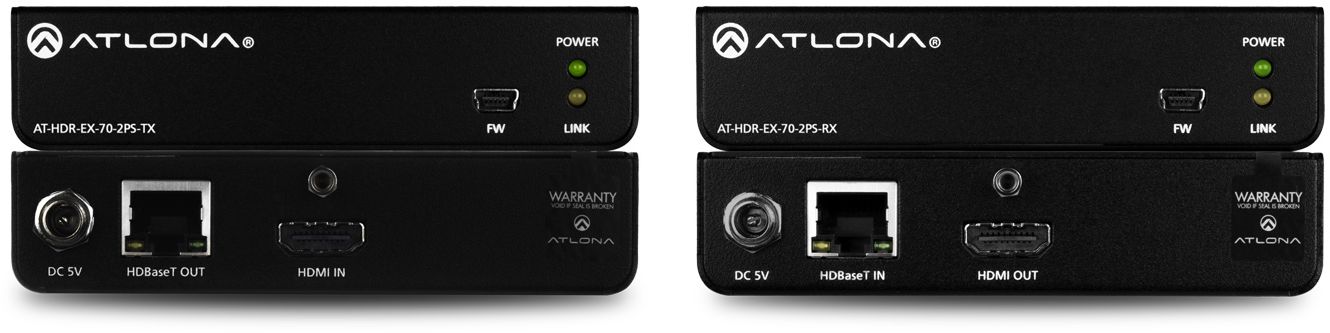

Rear panel I/O connectors

Placement of ports on rear panel simplifies wire management

Saves installation time and eliminates clutter

Field-updatable firmware

Front panel USB port provides an easy means for device updates

Ensures long-term system return on investment

Front panel Power and Link status LEDs

LED indicators provide power and HDBaseT link status information

Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

Easy installation into racks and confined spaces

Keeps devices out-of-sight when placed in public spaces

Included accessories

Installation guide, surface mounting brackets, and two external universal power supplies

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence
