Atlona® 4K/UHD HDMI Over 100 M HDBaseT Transmitter

Product Overview

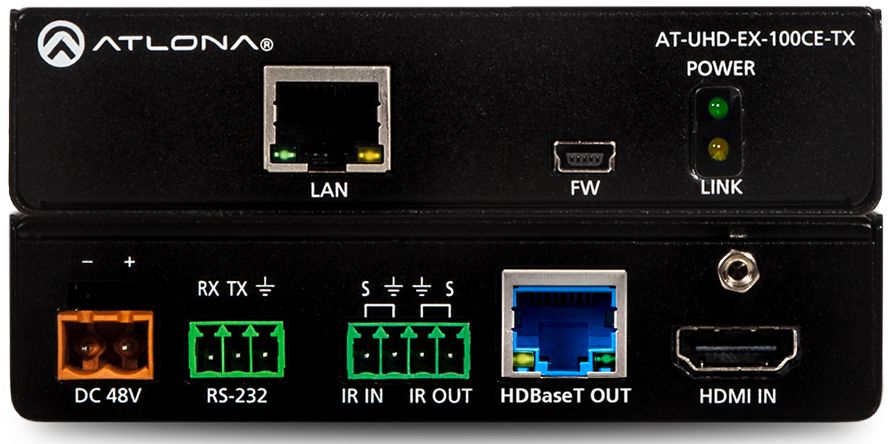

The Atlona AT-UHD-EX-100CE-TX is an HDBaseT transmitter for HDMI transmission up to 330 feet (100 meters) over category cable with Ethernet pass through, plus RS-232 and IR control. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-TX is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply and provides Power over Ethernet for compatible receiving devices. The AT-UHD-EX-100CE-TX is certified by the HDBaseT Alliance.

This HDBaseT Class A transmitter is designed to support the growing number of displays and video projectors in the commercial market with HDBaseT inputs. Built-in Ethernet and bi-directional control signal extension eliminates the need for additional cabling from switcher to the display or remote input device. Installer-friendly features include: a rack-mountable form factor that allows four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

Product Compatibility

The AT-UHD-EX-100CE-TX is compatible with the AT-UHD-EX-100CE-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs.

4K/UHD capability

Compatible with Ultra High Definition sources and displays

Full support of 4K/UHD streaming services and playback devices

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection

Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

PSE – Power Sourcing Equipment

Uses external power supply (included)

Eliminates the need for remote power or power-injection devices

AV, Ethernet, power, and control over HDBaseT

Delivers 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable

Eliminates multiple cable runs between source, control system, router, and display

Extended distance HDMI extension

Transmits HDMI signals up to 330 ft (100m) @ 1080P and 328 ft (100m) @ 4K/UHD using CAT6a/7 cable

Uses easy to integrate category cable for low-cost, reliable system installation

Rear panel I/O connectors

Placement of ports on rear panel simplifies wire management

Saves installation time and eliminates clutter

Multi-channel audio compliant

Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, DTS:X™

Allows any multi-channel audio stream to be used within a professional audio system

Field updatable firmware

Front panel USB port provides an easy means for kit upgrades

Ensures long term system return on investment

Front panel Power and Link status LEDs

LED indicators provide power and HDBaseT link status information

Provides easy setup and troubleshooting

Power chaining

Included power supply provides ample power for up to three Atlona HDBaseT extenders

Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply

Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (2.5cm) high quarter rack-width enclosure

Easy installation into racks and confined spaces behind displays

Keeps devices out-of-sight when placed in public spaces

Included accessories

User guide, desktop power supply for transmitter, detachable power cable, IR emitter P/N AT-IR-CS-TX, mounting brackets

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence
