Atlona® 4K/UHD HDMI Over HDBaseT Transmitter

Product Overview

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.

The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.

The AT-UHD-EX-70C-TX is ideal for use in:

Extending AV and control to HDBaseT-equipped projectors and flat-panel displays

Integrating a remote source or HDMI connection point into an Atlona switcher with an HDBaseT input

Installations in which UHD-EX Series transmitters are to be used with third-party HDBaseT devices

Product Compatibility

The AT-UHD-EX-70C-TX is compatible with the AT-UHD-EX-70C-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

Supports 4K/60 4:2:0 and 4K/30 4:4:4

Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection

Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

Local AC powering

Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector

IEEE 802.3af PoE Power Sourcing Equipment (PSE) – can supply power over HDBaseT to a remote receiver, such as the AT-UHD-EX-70C-RX*

Saves time and integration costs

* The transmitter and receiver can be purchased together as the AT-UHD-EX-70C-KIT.

Long distance HDBaseT extension

Transmits AV and control up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable

Uses easy-to-integrate category cable for low-cost, reliable system installation

Extends bidirectional RS-232 and IR control signals

Control signals travel over HDBaseT link to device for maximum control system flexibility

Simplifies integration of source, control system, and display

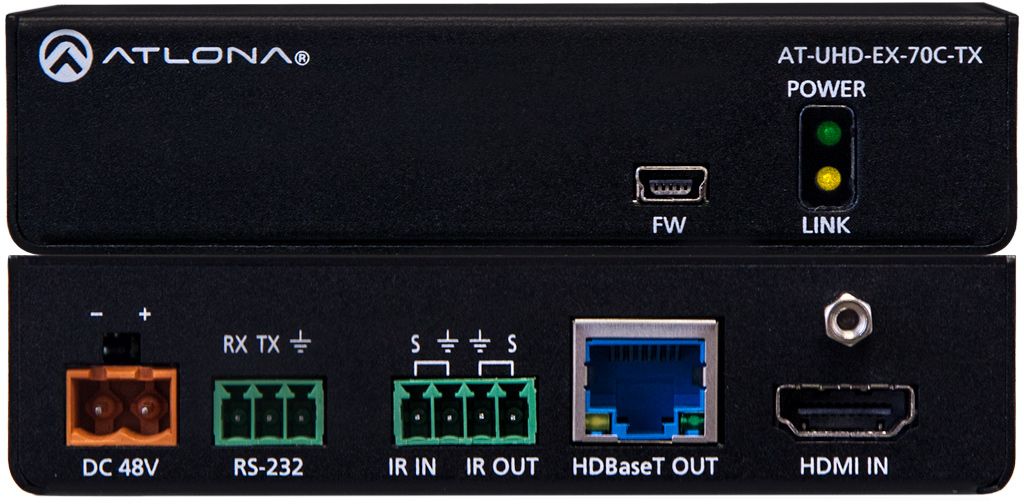

Rear panel I/O connectors

Placement of ports on rear panel simplifies wire management

Saves installation time and eliminates clutter

Multi-channel audio compliant

Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™

Allows any multi-channel audio stream to be used within a professional audio system

Field-updatable firmware

Front panel USB port provides an easy means for device updates

Ensures long-term system return on investment

Front panel Power and Link status LEDs

LED indicators provide power and HDBaseT link status information

Provides easy setup and troubleshooting

Power chaining

Included power supply provides ample power for up to three Atlona HDBaseT extenders

Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply

Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

Easy installation into racks and confined spaces

Keeps devices out-of-sight when placed in public spaces

Included accessories

User guide, surface mounting brackets, and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence
