Atlona® 4K/UHD Remote Powered HDMI Over 100 M HDBaseT Transmitter

Product Overview

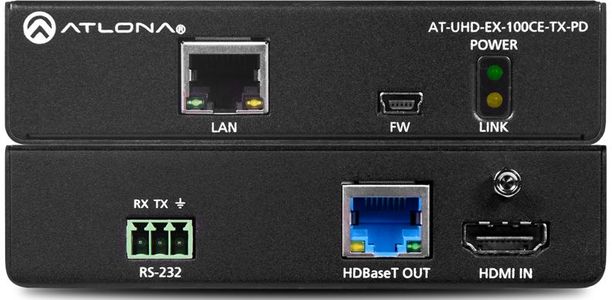

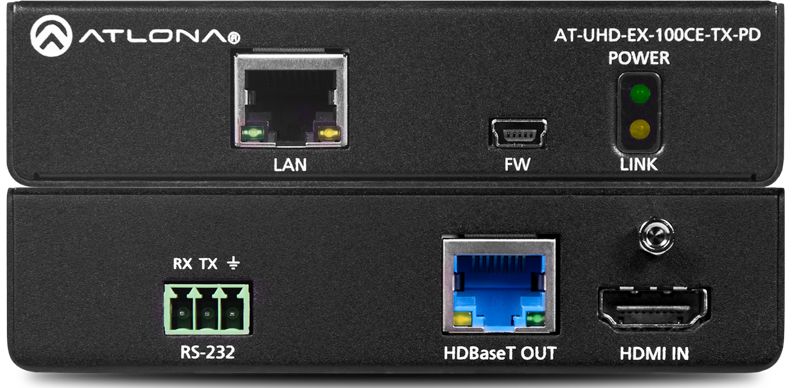

The Atlona AT-UHD-EX-100CE-TX-PD is an HDBaseT transmitter for HDMI transmission up to 330 feet (100 meters) over category cable with Ethernet pass-through and RS-232 control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-TX-PD is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This device is externally powered via Power over Ethernet, and is ideal for use with Atlona switchers with PoE-equipped HDBaseT inputs, including the AT-UHD-CLSO-612ED, AT-UHD-CLSO-840, and AT-UHD-SW-5000ED.

The AT-UHD-EX-100CE-TX-PD transmitter simplifies system design when powered by an Atlona switcher with HDBaseT inputs, reducing cost and complexity by eliminating the need for a power supply. It can also be paired with the AT-UHD-EX-100CE-RX-PSE receiver and AT-HDVS-200-RX scaling receiver, both delivering PoE. Installer-friendly features include a rack-mountable form factor that allows four transmitters to share a single 1U rack tray, and a front mounted USB port for easy firmware updates.

This transmitter is ideal for use in applications where:

HDBaseT transmitters need to be installed in a location where local AC power may not be available, such as a lectern or conference room table

4K/UHD signal extension and HDCP 2.2 compliance are necessary in the system design

Product Compatibility

The AT-UHD-EX-100CE-TX-PD is compatible with the AT-UHD-EX-100CE-RX-PSE receiver, and both products are available together as a kit. This transmitter is also ideal for Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This HDBaseT transmitter is also ideal for use with the AT-OME-RX11 receiver with audio de-embedding, as well as the AT-OME-RX21 scaling receiver with local HDMI input and audio de-embedding.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

Compatible with Ultra High Definition sources and displays

Full support of 4K/UHD streaming services and playback devices

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection

Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

Remotely powered via PoE (Power over Ethernet)

IEEE 802.3af PoE Powered Device (PD)

Power for transmitter is supplied by receiver over HDBaseT

Saves time and integration costs

AV, Ethernet, power, and control over HDBaseT

Delivers 4K/UHD video, embedded audio, 100Base-T Ethernet, power, and control through a single cable

Eliminates multiple cable runs between source, control system, router, and display

Extended distance HDMI extension

Transmits HDMI signals up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable

Uses easy-to-integrate category cable for low-cost, reliable system installation

Extends RS-232, CEC, and Ethernet control signals

Control signals travel over HDBaseT link to device for maximum control system flexibility

Simplifies integration of source, control system, and display

* The AT-UHD-EX-100CE-TX-PD does not include I/O ports for IR control signals extended over HDBaseT. If IR control over HDBaseT is required, please refer to the AT-UHD-EX-100CE-TX.

Rear Panel I/O Connectors

Placement of ports on rear panel simplifies wire management

Saves installation time and eliminates clutter

Multi-channel Audio Compliant

Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™

Allows any multi-channel audio stream to be used within a professional audio system

Field-updatable firmware

Front panel USB port provides an easy means for device updates

Ensures long-term system return on investment

Front panel Power and Link status LEDs

LED indicators provide power and HDBaseT link status information

Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

Easy installation into racks and confined spaces

Keeps devices out-of-sight when placed in public spaces

Included accessories

User guide, mounting brackets

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence
