Atlona® HDBaseT Receiver for HDMI with Audio

Product Overview

HDBaseTTM receiver for HDMI®, Ethernet, power, and control

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

HDCP 2.2 compliant

Local AC powering – PoE (Power over Ethernet) source

Audio de-embedding

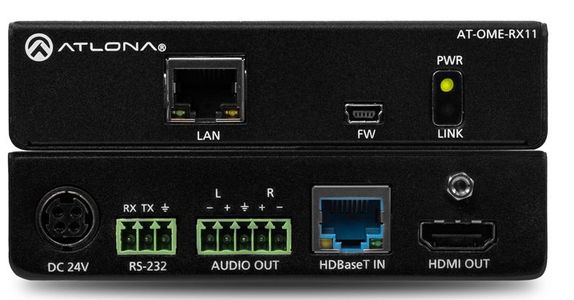

The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.

The OME-RX11 incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.

Applications

Complete system integration – The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.

Video conferencing and interactive displays – The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs, to provide audio de-embedding for feeding into an amplifier and speakers.

Included accessories

Installation guide, surface mounting hardware, and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in commercial and residential systems

Specify, purchase, and install with confidence
