Atlona® HDBaseT Scaler

Product Overview

Product Compatibility

The AT-HDVS-150-RX is compatible with the AT-HDVS-150-TX switching transmitters, available in standard and wall plate models.

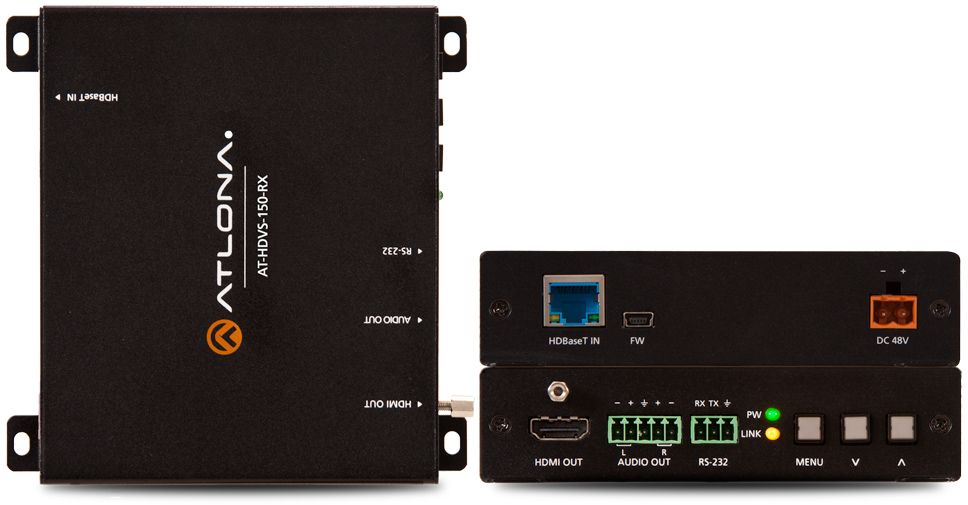

The Atlona AT-HDVS-150-RX is an HDBaseT receiver and HD scaler for video signals up to 1080p, plus embedded audio over distances up to 230 feet (70 meters). The HDVS-150-RX is designed for use with the HDVS-150-TX switching transmitters, and together serve as a compact, automated AV system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX remotely powers the HDVS-150-TX through Power over Ethernet (PoE).

The HDVS-150-RX offers advanced scaling capabilities including image adjustment capability, and a feature for automatically matching incoming signals to the display’s native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display.

Compact Scaler and Extender

The HDVS-150-RX combines the benefits of HD scaling and integrated display control, and the advantages of HDBaseT signal extension. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. The HDVS-150-RX can be surface-mounted for easy installation behind a display or above a projector.

Automatic Display Control

When used in conjunction with an HDVS-150-TX transmitter, the HDVS-150-RX can provide control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-150-RX can trigger a display to power on automatically whenever a laptop or other device is connected to the HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-150-RX display control capability can also be triggered by an external control system.

Applications

The HDVS-150-RX is ideal for use in complete system applications with HDVS-150-TX transmitters to provide a two or three-input AV system supporting HDMI and VGA signals, auto-switching, display control, and scaling plus 230 foot (70 meter) extension to displays.

Audio de-embedding

Provides two channel, analog audio signal on balanced captive screw connectors

Improves AV system audio with the use of an external amplifier such as the Atlona AT-PA100-G2

Long distance HDMI extension

Receives HDMI and VGA/Audio signals up to 230 ft (70m) @ 1080p over CAT6a/7 and 197 feet (60 m) @ 1080p over CAT5e/6

Uses easy-to-integrate category cable for low-cost, reliable system installation

HD video scaler with HDMI output and input resolution control

Scales video signals up to 1080p/60Hz and 1920×1200

Set desired input resolution from 800×600 to 1920×1200 for a PC source

Incoming signals can be automatically scaled to the display’s native resolution

EDID management

Manages EDID communications with a source connected to the HDVS-150-TX

Allows integrators to set or match a PC’s graphics resolution

HDCP management

HDCP compliance can be disengaged through the on-screen menu, control software, or a control system

Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

RS-232 scaler and switcher control

Input switching (at the AT-HDVS-150-TX), image adjustments, resolution settings, and auto-set to display’s native resolution can be made from a third party control system

Seamless integration with larger, control system-based AV systems

RS-232 display control

Facilitates On/Off display control; Included software simplifies programming

Eliminates need for complex control system in small AV system

Power over Ethernet for AT-HDVS-150-TX

Industry standard IEEE 802.3af PoE supplied by the receiver over HDBaseT

No local AC outlet required at the AT-HDVS-150-TX switcher; saves time and integration costs

Field-updatable firmware

Rear panel USB port provides an easy means for device updates

Ensures long-term system return on investment

Included accessories

User guide and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in commercial and residential systems

Specify, purchase, and install with confidence
