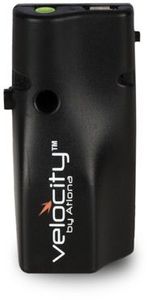

    Atlona® IP to Relay / Sensor Signal Converter for Velocity Control System

    Atlona

    Model #:

    AT-VCC-RELAY-KIT

    Model #: AT-VCC-RELAY-KIT
    134560
    Atlona
    $99,999.00

    At a Glance

    The Atlona AT-VCC-RELAY-KIT is an accessory for the Atlona Velocity Control System that provides conversion between IP control commands and relay / sensor signals. This Velocity Control Converter is very compact and can be placed anywhere a device requires control and is not IP-capable. The VCC-RELAY-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs onto any surface via a convenient mounting dock. A simple “click” locks it into place for a secure, reliable installation. The control port module supports DIN rail installation, and features four relay outputs plus four sensor inputs. The inputs and outputs are both configurable for various operating modes.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    Comprehensive Support of Third-Party AV Products

    The Velocity Control System can be integrated with a wide range of sources, displays, DSPs, videoconferencing systems, and many other types of AV equipment. Please refer to this comprehensive database of supported third-party products for detailed information. Devices in the database are ready for immediate integration into a Velocity Control System with just a few mouse clicks. No driver download or installation is necessary.

    Provides conversion between IP and relay / sensor control signals for the Velocity Control System

    Compact form factor – inconspicuous and easily concealable

    Easy to set up and configure from the Velocity Control Gateway

    Remotely powered via PoE (Power over Ethernet)

    Also can be powered through USB from a nearby USB power source

    Primary unit installs onto any surface via a convenient mounting dock – simple “click” locks device into place

    Control port module includes four relay outputs and four sensor inputs

    Relay outputs configurable to support common relay types – Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), and Double Pole Double Throw (DPDT)

    Sensor inputs can be configured to support voltage or contact closure sensing

    Push-in terminal blocks for relay and sensor connections

    4.5 foot (1.4 meter) cable

    Control port module supports DIN rail installation

    Award-winning 10 year limited product warranty

    Useful Documents
    Specification Sheet
    Installation Guide and Manual
    Specifications

    General Specs

    Manufacturer Warranty10 Year

    General

    Network ConnectionRJ-45, 100/10 Mbps Ethernet Protocol
    Relays4 x SPST with transient voltage suppression; 24 V AC/DC or 0.5 A NO contact
    Relay ConfigurationsSingle Pole Single Throw (SPST); Single Pole Double Throw (SPDT); Double Pole Double Throw (DPDT)
    Sense ModesVoltage: AC/DC voltages ± 3 V to ± 24 V (RMS); Contact Closure: Use for input from devices or feedback from external relays
    USBMicro-B
    PoE802.3af-compliant
    H x W x D (AT-VCC-RELAY)0.90 x 3.24 x 2.00 (inch)
    H x W x D (AT-VCC)0.82 x 1.22 x 2.58 (inch)
    AT-VCC-RELAY Weight0.15 (lb)
    AT-VCC Weight0.05 (lb)
