Product Overview

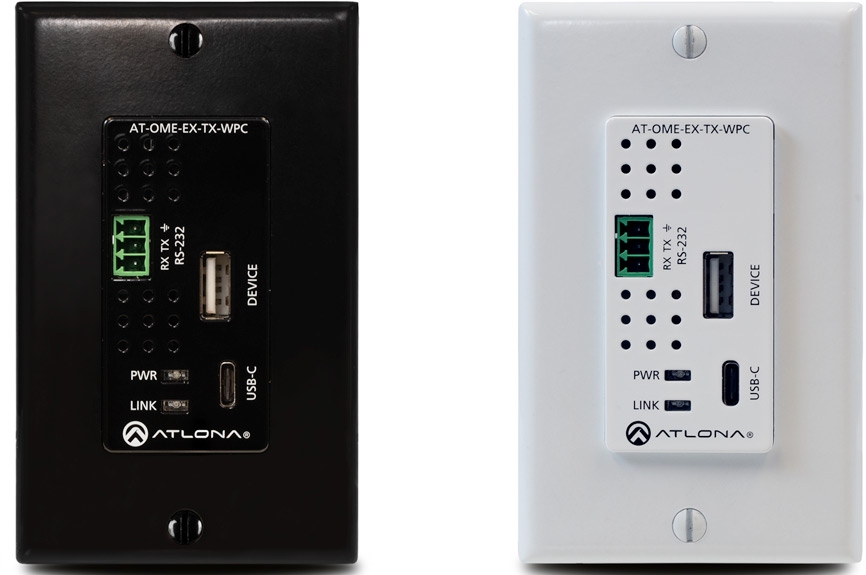

The Atlona AT-OME-EX-TX-WPC is an HDBaseT transmitter with USB-C input. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WPC is HDCP 2.2 compliant and extends RS-232 control signals. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WPC includes a PC host interface over USB-C, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
HDBaseTTM transmitter for USB-C (AV and host data), power, control, and USB (peripheral)
USB 2.0 interfacing and extension up to 330 feet (100 meters)
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
HDCP 2.2 compliant
Remote powering over HDBaseT
Applications
Complete system integration – The OME-EX-TX-WPC and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
Lecture hall and training room applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
Video conferencing – The OME-EX-TX-WPC and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
Technical Features
US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
USB-C input for AV and data
Video, audio, power, and data over category cable utilizing HDBaseT technology
USB 2.0 interfacing and extension up to 330 feet (100 meters)
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
HDCP 2.2 compliant
Remote powering over HDBaseT
Multi-channel audio compliant
Field-updatable firmware
Front panel power and signal status LEDs
Award-winning 10 year limited product warranty
Also available: OME-EX-TX-WP with HDMI input
