Product Overview
The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.
Power Source Equipment (PSE) devices have an internal power supply or plug into external power supply and provide power to the HDBaseT cable. Powered Devices (PD) receive their power from the HDBaseT cable.
The PS-POE can be used with Atlona HDVS-200 and UHD-EX Series HDBaseT endpoint devices requiring remote PoE powering, especially when used with HDBaseT-equipped products that do not provide PoE, including displays, switchers, or third-party endpoints.
Power supply for remote powering for powered devices on HDBaseT transmission lines
Supplies 48 VDC to products using IEEE 802.03af Power over Ethernet
Industry standard powering scheme for HDBaseT products
Mid-span power supply
Routes powers to up- and down-stream lines simultaneously
Saves cost by eliminating duplicate devices

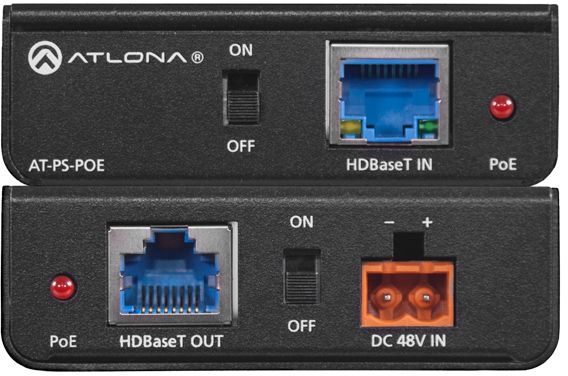

Power switches for incoming and outgoing line
Power can be turned off in the direction of a non-PoE device
Sends power only in the required direction
Supports 4K/UHD signals
10.2 Gbps bandwidth power supply supports 4K/UHD resolutions, multi-channel audio formats, HDCP 2.2, and offers full 3-D pass-through
Ideal for ultra-high resolution signals
Upgrade for PoCc systems
Allows UHD-EX Series receivers to be used with PRO2HD Series or HD-CAT Series systems
Maintains ROI on legacy systems that need an additional signal extension or receiver upgrade/replacement
Low-profile, discreet enclosure
Easy insertion anywhere into HDBaseT transmission line including confined spaces
Keeps devices out-of-sight when placed in public spaces
Included accessories
User guide, 48 VDC power supply, and mounting brackets
Award-winning 10 year limited product warranty
Ensures long-term product reliability and performance in residential and commercial systems
Specify, purchase, and install with confidence
