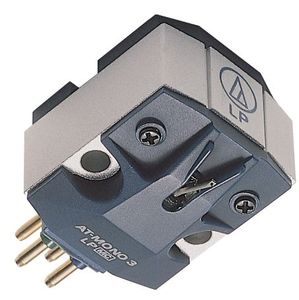

    Audio-Technica® AT-MONO3/LP Dual Moving Coil Cartridge

    Audio-Technica

    Model #:

    AT-MONO3/LP

    Model #: AT-MONO3/LP
    343775
    Audio-Technica
    $99,999.00

    At a Glance

    Product Dimensions 0.63"h x 0.65"w x 1.04"d

    The AT-MONO3/LP is a high-output (1.2 mV) moving coil cartridge designed specifically for use with mono vinyl records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT-MONO3/LP cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction, making it safe for use with stereo records. The voice coils are wired in series, resulting in one mono signal that is transmitted to the cartridge’s white-blue terminals and red-green terminals in order to feed both inputs of a stereo phono preamp.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    The cartridge’s low-mass 0.6 mil conical stylus is mounted on an aluminum cantilever for excellent tracking performance. Because the AT-MONO3/LP does not easily pick up unnecessary strain components from distorted or scratched records, it produces mono audio of a much higher quality than that generated by a stereo cartridge. The cartridge features a strong, rigid body of die-cast aluminum alloy and synthetic resin to eliminate unnecessary vibrations.

    * This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play mono microgroove 33-1/3 vinyl records.

    Dual moving coil cartridge designed specifically for use with mono vinyl records

    Aluminum cantilever with 0.6 mil conical stylus

    Strong, rigid body construction of die-cast aluminum alloy and synthetic resin

    PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

    Compatible with stereo playback systems

    * This cartridge with 0.6 mil conical stylus is not compatible with SP (standard play) shellac records. It is designed to play microgroove 33-1/3 vinyl records.

    Note: Stylus assembly is not field-replaceable.

    Specifications

    General Specs

    Product Weight (lbs.)0.02
    Width (in.)0.65
    Depth (in.)1.04
    Height (in.)0.63
    Frequency Response20-20,000 Hz
    Manufacturer Warranty1 Year

    General

    Frequency Response20-20,000 Hz
    Vertical Tracking Angle23°
    Vertical Tracking Force1.5-2.5 g (2.0 g standard)
    Recommended Load Impedance400-47,000 ohms
    Coil Impedance40 ohms (1 kHz)
    DC Resistance40 ohms
    Coil Inductance190 µH (1 kHz)
    Output1.2 mV (at 1 kHz, 5 cm/sec)
    Style Shape0.6 mil conical
    Style TypeBonded round shank
    CantileverAluminum pipe
    Static Compliance20 x 10-6 cm/dyne
    Dynamic Compliance7 x 10-6 cm/dyne (100 Hz)
    MountHalf-inch
    Weight6.8 g (0.24 oz)
    Dimensions16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
    Accessories IncludedNon-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 20 mm × 2); plastic protector; brush; PCOCC lead wire set
