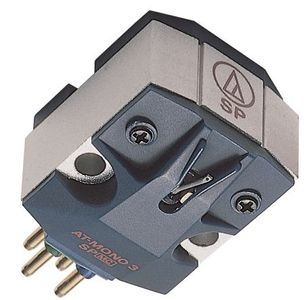

    Audio-Technica® AT-MONO3/SP Dual Moving Coil Cartridge

    Audio-Technica

    Model #:

    AT-MONO3/SP

    Model #: AT-MONO3/SP
    343779
    Audio-Technica
    $99,999.00

    At a Glance

    Product Dimensions 0.63"h x 0.65"w x 1.04"d

    The AT-MONO3/SP is a high-output (1.2 mV) moving coil cartridge designed specifically for use with 78 RPM mono shellac records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT-MONO3/SP cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction to keep groove wear to a minimum. The voice coils are wired in series, resulting in one mono signal that is transmitted to the cartridge’s white-blue terminals and red-green terminals in order to feed both inputs of a stereo phono preamp.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    The cartridge’s low-mass 2.5 mil conical stylus is mounted on an aluminum cantilever for excellent tracking of the wider 78 RPM shellac grooves. The cartridge features a strong, rigid body of die-cast aluminum alloy and synthetic resin to eliminate unnecessary vibrations.

    * This cartridge with 2.5 mil conical stylus is not compatible with microgroove 33-1/3 and 45 RPM vinyl records. It is designed to play 78 RPM SP (standard play) shellac records.

    Dual moving coil cartridge designed specifically for use with 78 RPM shellac records

    Aluminum cantilever with 2.5 mil conical stylus

    Strong, rigid body construction of die-cast aluminum alloy and synthetic resin

    PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

    Compatible with stereo playback systems

    * This cartridge with 2.5 mil conical stylus is not compatible with microgroove 33-1/3 and 45 RPM vinyl records. It is designed to play 78 RPM SP (standard play) shellac records.

    Note: Stylus assembly is not field-replaceable.

    Specifications

    General Specs

    Product Weight (lbs.)0.02
    Width (in.)0.65
    Depth (in.)1.04
    Height (in.)0.63
    Frequency Response20-15,000 Hz
    Manufacturer Warranty1 Year

    General

    Frequency Response20-15,000 Hz
    Vertical Tracking Angle23°
    Vertical Tracking Force3.0-7.0 g (5.0 g standard)
    Recommended Load Impedance400-47,000 ohms
    Coil Impedance40 ohms (1 kHz)
    DC Resistance40 ohms
    Coil Inductance190 µH (1 kHz)
    Output1.2 mV (at 1 kHz, 5 cm/sec)
    Style Shape2.5 mil conical
    Style TypeBonded round shank
    CantileverAluminum pipe
    Static Compliance10 x 10-6 cm/dyne
    Dynamic Compliance3.5 x 10-6 cm/dyne (100 Hz)
    MountHalf-inch
    Weight6.8 g (0.24 oz)
    Dimensions16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
    Accessories IncludedNon-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 20 mm × 2); plastic protector; brush; PCOCC lead wire set
