Product Dimensions 0.68"h x 0.67"w x 1.2"d

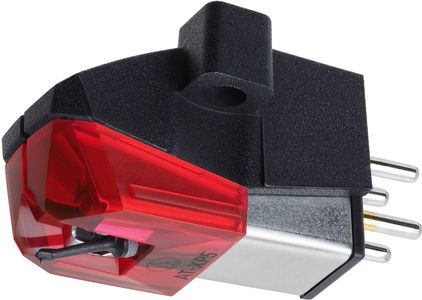

Audio-Technica® AT-XP5 DJ Cartridge with nylon wire suspension and channel separationRead More
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
0.3 x 0.7 mil elliptical bonded stylus tip
Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
5.5 mV high-level output
Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
Design offers maximum visibility of the stylus tip
Great tracking and channel separation for high-fidelity sound
General Specs | |
| Product Weight (lbs.) | 0.01 |
| Width (in.) | 0.67 |
| Depth (in.) | 1.2 |
| Height (in.) | 0.68 |
| Frequency Response | 20 - 18,000 Hz |
| Manufacturer Warranty | 1 Year |
Additional Specifications | |
| Frequency Response | 20-18,000 Hz |
| Channel Separation | 20 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 6.7 k ohms (1 kHz) |
| DC Resistance | 990 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Recommended load capacitance | 100 to 200 pF |
| Output | 5.5 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Carbon fiber-reinforced ABS |
| Mount | Half-inch |
| Weight | 6.2 g (0.22 oz) |
| Dimensions | 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
| Replacement Stylus | ATN-XP5 |
