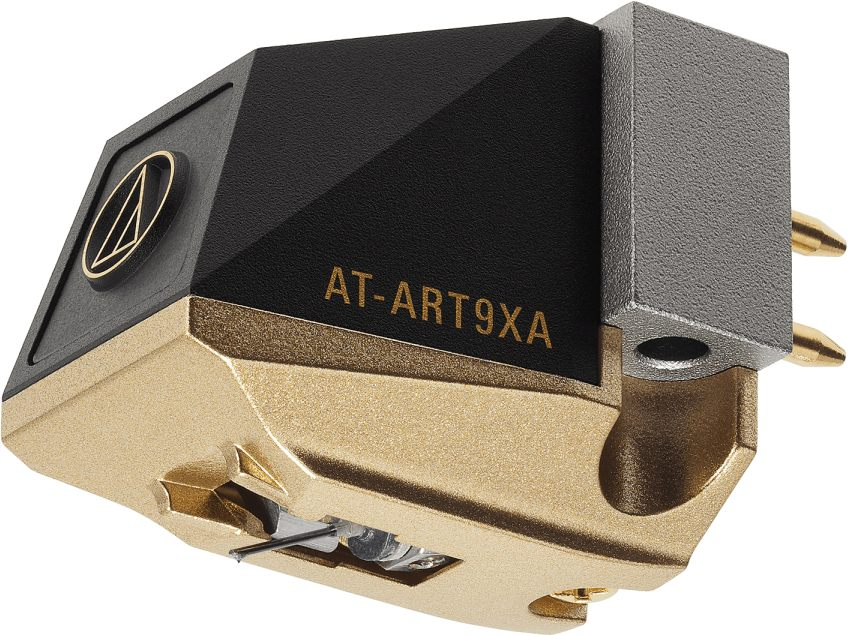

    Audio-Technica Non-Magnetic Core Dual Moving Coil Cartridge

    Audio-Technica

    Model #:

    AT-ART9XA

    Model #: AT-ART9XA
    1264754
    Audio-Technica
    $99,999.00

    At a Glance

    Product Dimensions 0.68"h x 0.66"w x 0.98"d

    Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response.Read More

    Call for Best Price

    Get to know this product.

    Product Overview

    Product Overview

    An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.

    The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.

    The AT-ART9XA has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance.

    Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.

    Additional Features

    Non-magnetic core moving coil cartridge offers superior spatial representation

    Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

    Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

    Neodymium magnet and permendur yoke significantly increase magnetic energy

    Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

    PCOCC coils ensure high-fidelity transmission

    Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

    Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

    Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

    *Please Note: AT-ART9XA’s stylus assembly is not field-replaceable

    Specifications

    General Specs

    Product Weight (lbs.)0.02
    Width (in.)0.66
    Depth (in.)0.98
    Height (in.)0.68
    Frequency Response20-50,000 Hz
    Color Finish NameBlack/Gold

    Cartridge & Stylus

    Channel Separation30 (dB at 1 kHz)
    Vertical Tracking Angle20°
    Vertical Tracking Force1.6-2.0 g (1.8 g standard)
    Stylus ConstructionNude
    Recommended Load ImpedanceMin. 100 ohms (when head amplifier connected)
    Coil Impedance12 ohms (1 kHz)
    DC Resistance12 ohms
    Coil Inductance2.5 µH (1 kHz)
    Output Voltage 0.2 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 0.5 dB (1 kHz)
    Stylus Shape Shibata
    Cantilever 0.28 mm diameter solid boron
    Static Compliance 20 x 10-6 cm/dyne
    Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 8.5 g (0.30 oz)
    Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
    Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
    Threaded Hole M2.6 x 2
    NotesNote: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
