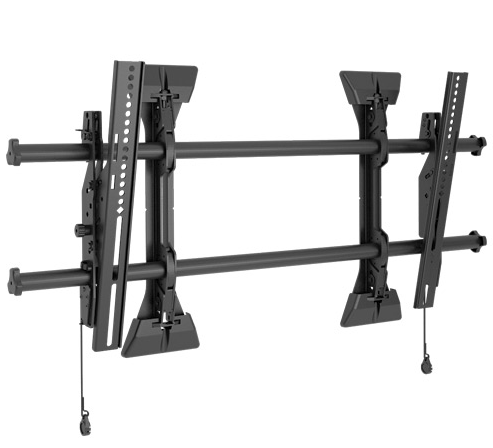

    Chief® Professional AV Solutions Black Large Fusion Tilt Wall Mount


    Model #:

    LTM1U-G

    Model #: LTM1U-G
    83315
    Chief
    $99,999.00

    At a Glance

    Product Dimensions 17"h x 34.75"w x 2"d

    Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.Read More

    Call for Best Price

    People also viewed:

    Get to know this product.

    Product Overview

    Product Overview

    New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

    Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

    Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

    Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

    Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

    Set screws keep the mount rigid, stable and secure throughout the life of the installation

    ClickConnect offers an audible click when the screen safely engages with the mount

    Built-in cable stand provides easy access under the screen

    A full line of accessories can be installed with the mount and the entire unit can be adjusted together

    Multiple installation options for various stud distances

    Exclusive nesting spacers can be stacked to achieve any depth

    Quick-Store Cords use magnets to easily store and access pull cords

    Improved cable management with new end caps

    Integrated Security

    Ships with a custom hardware kit that can be hung from mount rails if installing in stages

    Easy Open box with less waste to throw away

    Specifications

    General Specs

    Product Weight (lbs.)22
    TiltYes
    Depth (in.)2
    Width (in.)34.75
    Height (in.)17
    Mount TypeTilt
    TV Size's up to (in.)63
    Weight Capacity (lbs.)200

    General

    CertificationsTAA Compliant, UL Listed, OSHPD Approved
    ColorBlack
    Lateral Shift17.4" (441 mm)
    Manual Height Adjustment1" (25 mm)
    Maximum Screen Thickness6"
    Minimum Depth2" (51 mm)
    Mounting Pattern Compatibility (Universal Versions)100 x 100 - 878 x 500 mm
    Number Of Monitors1
    Overall Dimensions (H x W x D)17 x 34.75 x 2" (432 x 883 x 51 mm)
    Shipping Weight22.01 lbs (9.98 kg)
    Solution TypeUniversal
    Tilt+2°, -12°
    Typical Screen Sizes42 - 86"
    Wall Stud Compatibility In16" - 32" (406 mm - 813 mm)
    Weight Capacity200 lbs (90.7 kg)
    OrientationLandscape
