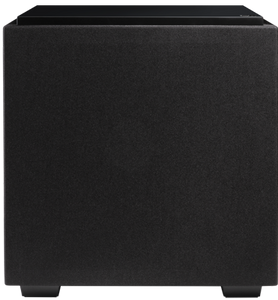

    Definitive Technology Descend Series Midnight Black 8" Subwoofer


    Model #:

    DNSUB 8 (Black)

    Model #: DNSUB 8 (Black)
    807961
    Definitive Technology
    $99,999.00

    At a Glance

    Product Dimensions 12.0"h x 12.8"w x 13.1"d

    Brand new design that pushes the boundaries of ordinary subs. The DNSUB8 easily out performs "their 12" by utilizing 1x 8" Long Throw Woofer with 2x 8" 3XR Architecture Base Radiators. Custom Class D 500W Amplifier. LFE RCA Type Input and L/R 5way Binding Posts. Auto On/Off. 30hz - 200Read More

    Call for Best Price

    Color Finish Name:Midnight Black

    Get to know this product.

    Product Overview

    Product Overview
    DN8’s unique 3XR Architecture™ means it performs louder and clearer than other 8” subwoofers.
    Fits Anywhere

    Just over one foot wide

    Loud & Clear

    Unique 3XR Architecture

    More Bass

    Like a 10” subwoofer in an 8” sub cabinet

    More Bass from the Same Space

    Descend’s unique 3XR Architecture provides triple the bass-producing surface area of a traditional ported subwoofer. This extra surface area moves more air, resulting in massive low end. And because 3XR doesn’t use ports, it also provides crystal-clear sound with no port noise distortion.

    Passive Radiators for louder, lower, cleaner bass

    As the core technology behind Descend’s 3XR Architecture, its passive bass radiators enable the DN8 to play as loud and low as a 10” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.

    What you get is the best of both worlds: louder, clearer bass than a ported sub from a smaller enclosure than a sealed sub.

    Maximum Impact

    The DN8 is equipped with a 500-watt peak custom Class D digital amplifier, designed to get the most out of the DN8’s 3XR Architecture. This custom amplification provides the Descend DN8 enough power and efficiency to play as low as 35Hz from a one-foot wide box.

    Custom Class D Digital Amplification for immediate impact

    Because the DN8 Class D amplifier is so efficient, little power is wasted as heat, and its entire output is dedicated to providing significantly smoother bass and greater impact. This allows the DN8 subwoofer to blend naturally into any audio system while producing greater volume and impact than competitive designs.

    Plays Well With Others

    You can customize the DN8 to the needs of your application, system and space. The DN8 features built-in controls for variable volume, low pass filter and phase (0/180°) for optimum bass levels and the ability to customize it to the specific needs of your system.

    Back Panel Controls for optimized bass levels

    Manually adjust DN8’s variable volume, low pass filter, and phase so it always sounds perfect within your system.

    Variable Volume

    Adjust the volume level of your subwoofer to ensure perfectly proportioned bass for your audio system and your room.

    One, two, or four subs for smoother bass throughout the room

    While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.

    When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.

    Useful Documents
    Specifications

    General Specs

    ColorBlack
    Depth (in.)13.1
    Width (in.)12.8
    Height (in.)12.0
    Speaker TypePowered Subwoofers
    Voltage120V/240V
    Speaker Connector Type5-Way (Universal) Binding Posts/RCA
    AmpClass D
    MPN300046-01-00-101
    Frequency Response35–200Hz
    Color Finish NameMidnight Black
    RMS Power Handling (Watts)200
    Peak Power Rating (Watts)500
    Subwoofer SizeUp to 8"

    Overall

    Transducers8” long-throw woofer
    Passive RadiatorsDual 8” 3XR™ Configuration
    Bass TypePermanently Installed Feet with Rubber Pad

    Performance

    Low-Pass Crossover Freq60 Hz → 120 Hz
    Phase Adjustment0 / 180°
    Power SupplyInternal IEC 3 prong jack 120V/240V switch

    Inputs

    LFESingle RCA
    SpeakerLeft/Right 5-way binding posts

    Controls

    Main PowerAuto/Off
    Volume ControlPotentiometer w/ center detent
    Low Pass ControlPotentiometer w/ center detent
    Phase Control2-way switch
    Status RGB LEDYes
    WarningProposition 65 Warning for California Residents
