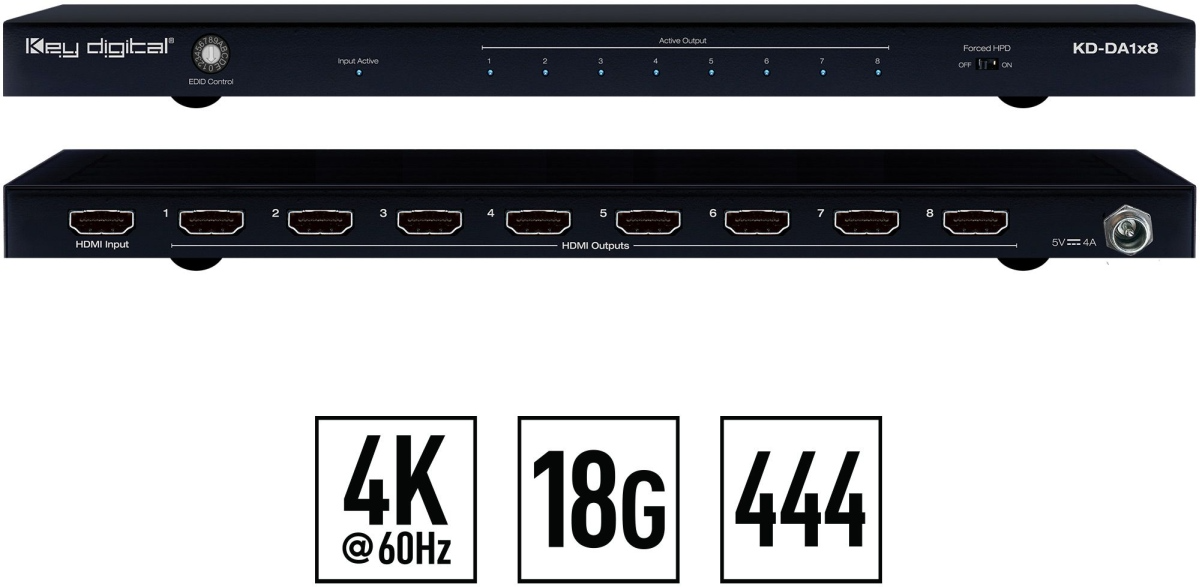

KD-DA1x8 HDMI Distribution Amplifier is designed and engineered to offer the best in quality, performance, and reliability, while providing a cost-effective, ultra-slim HDMI distribution solution. The KD-DA1x8 provides one input to multiple output HDMI distribution without signal degradation.Read More
1 HDMI Source to 8 HDMI Displays.
4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4.
High Speed / Performance for latest HDMI standards.
SD, HD, and VESA up to UHD/4K.
Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos.
Fully licensed and compatible with HDMI.
Compliancy up to HDCP 2.2 and backward compliant
More life-like images through a greater range of luminance levels.
Capability to pass 3D stereoscopic signal formats.
Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit.
Internal library with 15 EDID handshakes in addition to native EDID data of output/display.
Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake.
Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4.
EDID and HDCP buffering from Display to Source.
Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels.
General Specs | |
| Color/Finish Name | Black |
| Manufacturer Warranty | 3 Year |
| Product Weight (lbs.) | 0.8 |
