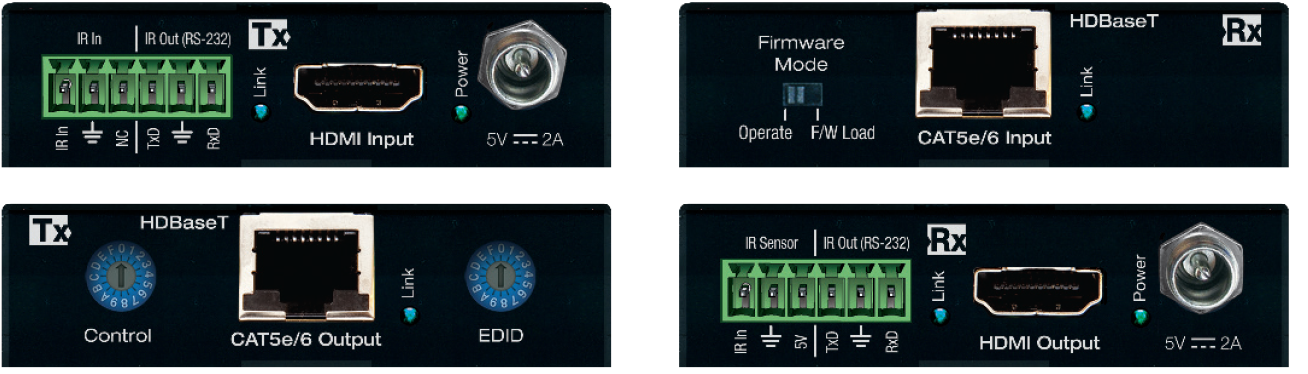

Key Digital® 4K HDBaseT/HDMI (Tx + Rx Set) Extenders

HDBaseT via Single CAT5e/6 UTP/STP Extension

• With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length

Signal Extension

• Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
• Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6UTP/STP cabling
• Up to 250 ft. @ 1080p /1920x1200 using KD-CAT6STP1X cabling
• Up to 230 ft. @ 1080p /1920x1200 using third-party CAT5e/6 cabling

HDCP 2.2

• Compliancy up to HDCP 2.2 and backward compliant

HDR (High Dynamic Range)

• More life-like images through a greater range of luminance levels

4K/UHD Resolution

• Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit

Deep Color Support

• Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit

3D

• Support for standard 3D stereoscopic signal formats

Low Profile

• Super slim chassis design

HDMI® and HDCP Licensing

• Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s

EDID Control

• Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx

Hot Plug Detection Control

• Enables integrator to choose if active signal voltage is forced to connected input devices

Full Buffer System™

• Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control

IR Sensor

• Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote(s) without external IR connecting block

Up/Down IR

• Two channels of IR enable control to/from devices connected to Tx and Rx units

RS-232

• Bi-Directional control to/from Tx and Rx unit on Phoenix connector

Rotary Switch RS-232 Control Mode

• Provides control of Tx unit as well as connectivity status

Lossless Compressed Digital Audio

• Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™

CEC Support

• For inter-device control between input and output HDMI channel

I2C Communication

• EDID and HDCP authentication to Display and Source

Control System Support

• Fully controllable by all RS-232 supported control systems via open API: Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

General Information

• Regulation: CE, RoHS, WEEE
• Enclosure: Black Metal
• Product (Each): 4.1” x 2.8” x 0.875”, Weight: 0.75 lbs
• Power: (2) KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,Interchangeable head with screw-in connector
• Accessories: (2) Mounting Brackets, (1) IR Emitter, (1) IR Sensor

Specifications
