Product Overview

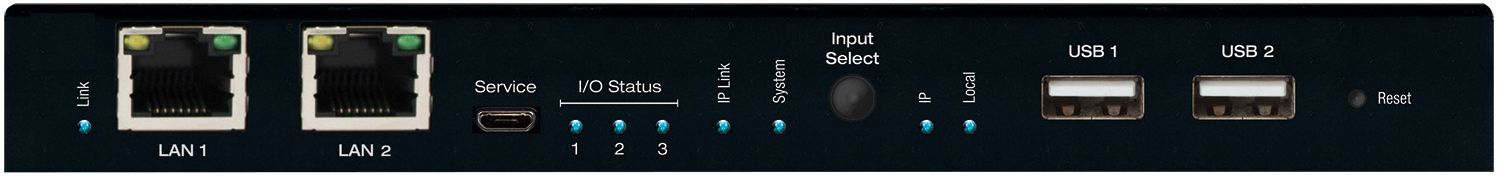

KD-IP922 series products are fully loaded, with all the connectivity needed for custom 4K AV over IP applications
Flexible system that fits your exact system needs for source and display quantities
Low latency, PoE powered, high quality AV over IP system that works on a 1G network
AV Over IP
Utilizes a managed gigabit network switch to enable HDMI video distribution, matrix switching, and signal extension.
Mix & Match System
Mix and match KD-IP822 and KD-IP922 encoders and decoders to optimize connectivity and overall price point.
Video Wall Processing
Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays.
Control
3 multi-function ports may be used as Compass Control® Pro master controller, by IP control systems via KeyCode open API, to extend control signals, or as a third-party control interface.
Key Digital® App Ready
Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, source and display control of popular devices via IR.
KDMS Pro Ready
PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, source and display control of popular devices via IR and PJ Link.
HDMI Pass-Through
Tx unit HDMI Pass-through to connect local monitor, HDMI Audio systems.
Audio De-Embedding
Audio from the HDMI input is de-embedded through Analog phoenix terminal to enable external audio connectivity with audio systems and amplifiers.
Audio Pre-Amp
Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port.
USB 2.0
Routing follows AV source / display selection with maximum of 4 USB keyboard or mouse devices simultaneously routed to a single host computer / encoder. 1.5Mbps maximum bandwidth. Webcams not supported. For non-keyboard & mouse device inquires, please contact Technical Support before purchase.
4K/Ultra HD Resolution
Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth).
4K Down-Scale
Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times.
Signal Extension
Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or or point-to-point.
Power Over Ethernet
Does not require power supply when integrated with compatible PoE network switch.
Redundant Power Connection
Added reliability for non-PoE integration.
HDCP 2.2
Compliancy up to HDCP 2.2 and backward compliant.
Installation
Use KD-SMS16 to cleanly install up to twelve ENC/DEC units in rack.
RS-232/TCP-IP Control Mode
Provides control of unit as well as connectivity status.
Surround Audio
Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™.
Control System Support
Controllable by all IR, RS-232 & TCP/IP supported control systems via open API.
HDMI® and HDCP Licensing
Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s.
EDID Control
Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder.
Hot Plug Detection Control
Enables integrator to choose if active signal voltage is forced to connected input devices.
Full Buffer System™
Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control.
HDR (High Dynamic Range)
HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels.
IR Sensor
Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block.
Up/Down IR
Two channels of IR enable control to/from devices connected to Encoder and Decoder units
RS-232
Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector.
