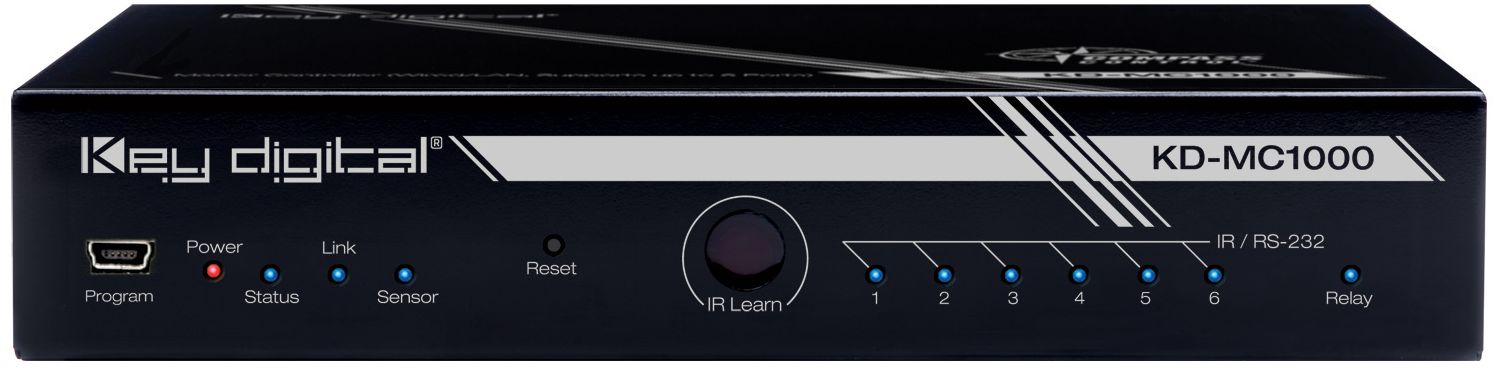

Key Digital® Master Controller

iOS Backbone

• First major control system built from the ground up using Apple’s iOS devices – iPad®, iPad® mini, iPhone®, and iPod touch®

Total 8 Ports

• 6 MCP35™ Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port
• Multi-function 3.5mm Ports can be programmed to be one of the following functionality: IR in any direction, bi-directional RS-232, Voltage Level output, Voltage Sensor input, PCM Audio sensor input or Composite Video Sensor input

USB Support

• USB port for firmware upgrades and initial setup

Built-In IR Learning

• Front-facing IR window enables learning of IR codes from external IR remotes

LAN

• Direct wire to LAN via RJ45

Relay Control

• Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital® KD-CCXR200 Converter

Real Time Master Control

• Allows user to store variables and events internally with/without iOS device

Compass Navigator™

• PC Editor allows fast and easy programming

Device Configuration

• Allows all functions and integration into Compass Project via IP and Compass Navigator™ software

Complete Control

• Audio, video, HVAC, lighting, shades, security, and more

Control Distribution

• Integrates with all Key Digital Control Routing HDMI Switchers to expand the control system and add control ports

No Need for PC or Mac in the System

• All system performance is controlled by  KD-MC1000 Master Controller and any iOS device

Compass Alliance™ Partners

• Pre-loaded code sets

Reliable iOS Integration Features

• IP Connectivity Stabilizer: Stable and constant TCP/IP socket created by KD-MC1000 with IP target devices via Telnet or HTTP regardless or iOS devices status.
• Event Handler: Scheduled events & actions based on iOS time and calendar variables including:
• Schedule Mode: Schedule and execute timer events from iOS device and/or KD-MC1000
• Schedule Sensing Mode: Execute events triggered by voltage or video/audio sensing by KD-MC1000

General Information

• Regulation: CE, RoHS, WEEE
• Enclosure: Black Metal 1/2U
• Accessories: External 5V3A Power Supply, USB Cable, (1) 3-Pin Terminal Block for
• Relay, (6) 3.5mm to IR Emitter, (3) 3.5mm to RS-232 Data Cable, Rack Mount Ears
• Product Dimensions: 6.5” x 4” x 1.13”
• Shipping Dimensions: 8.8” x 6.2” x 3.9”
