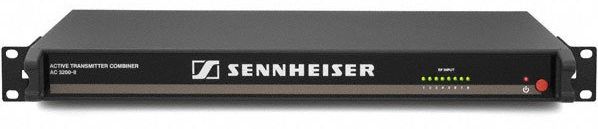

Sennheiser AC 3200-II Antenna Combiner

Active 8-channel antenna combiner for large, wireless monitor systems. Up to eight inputs, up to 100mW per channel, for transmission via single antenna. Avoids bothersome intermodulation; quick overview via LED strip.

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

Features

• Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
• Significant improvement of RF performance for multi-channel systems
• Broadband RF design to cover the UHF frequency range from 500-870 MHz
• Maximum input power of 250 mW
• LEDs on the front show whether a signal is present at the RF input
• Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000
• Series monitor transmitters

What's in the box?

• 1 AC 3200-II active transmitter combiner
• 1 NT12-125D in-line power supply
• 3 power cables
• 4 self-adhesive device feet
• 1 instruction manual

Technical Data

• Impedance 50 ohms
• Dimensions 436 x 215 x 44 mm
• Weight approx. 4 kg
• Attenuation 0 dB (+/- 1dB)
• Power consumption max. 90 W
• Operating temperature -10 °C to +45 °C
• RF frequency range 500 – 870 MHz
• Power supply 12 V DC
