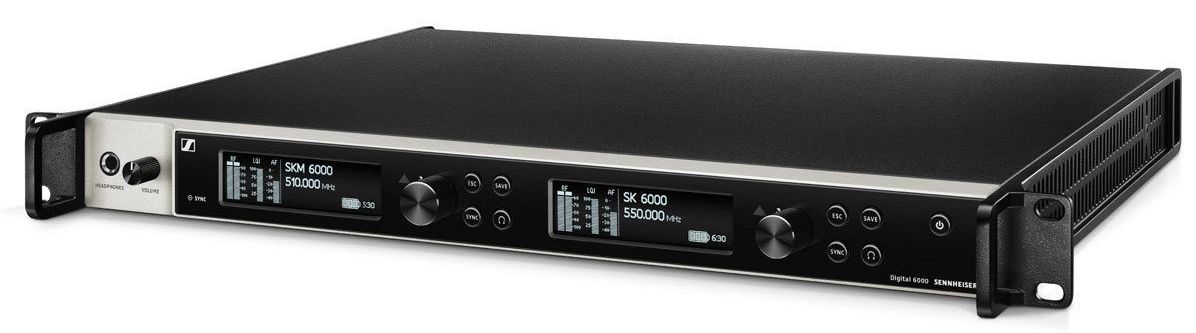

Sennheiser EM 6000 Digital 2-Channel Receiver
At a Glance
Digital 2-channel receiver for live productions and transmissions, even in the toughest environments. Huge spectral efficiency with equidistant frequency grid and true bit diversity. Analog and digital outputs (XLR, jack, AES-3, redundant Dante™), high-contrast OLED display with LQI indicator.Read More
Get to know this product.
Product Overview
Product Overview
Higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration– even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognize and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways.
Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling.
Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarized in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM).
The EM 6000 is compatible with UHF Sennheiser antenna systems.
19’’ 2-Channel receiver, 19 inch 1RU
Large 244 MHz switching bandwidth
Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
True bit diversity utilizes both receiver paths, combines their information content to provide the best possible signal
Equidistant frequency grid for maximum channel density and simplest setup
32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
Error correction and audio error masking
AES-256 encryption
Automatic frequency setup
Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45
Integrated antenna splitter for cascading of up to 8 systems
one high-quality OLED display per channel
Link Quality Indicator (LQI)
Wireless Systems Manager (WSM) compatible
Compatible with standard Sennheiser UHF antennas
Compatible with Digital 9000 transmitters in Long Range mode
What's in the Box
1 EM 6000
1 mains cable (with EU, UK or US plug)
Quick guide
Safety guide
2 Antennas
2 BNC Antenna Cables (50 Ω) for Daisy-Chaining
2 Rubber Feet
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 11.46 |
| Color | Black |
| MPN | EM 6002 |
| Manufacture Part Number | EM 6000 |
| Color Finish Name | Black |
General | |
| Dimensions | 44 x 483 x 373 mm |
| Frequency response | 30 Hz - 20 kHz (1.5 dB) |
| THD, total harmonic distortion | < 0.03 % (@ 1 kHz) |
| Weight | Approx. 5.2 kg |
| Power consumption | Max. 35 W |
| Audio output | Digital Audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bitDante™, RJ-45: 48 kHz, 96 kHz, 24 bitCan be externally synchronized using WCLK loop-through with BNC socketsAnalog Audio Outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced)-10 dBu to +18 dBu in steps of 1 dB (2 kΩ) |
| Storage temperature | -25°C to +70°C |
| Operating temperature | -10°C to +50°C |
| Switching bandwidth | 244 MHz |
| Power supply | 100 - 240 V AC, 50/60 Hz |
| Antenna connector | Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω) |
| Dynamic range | 111 dB (A) type |
| Frequency range | 470 - 714 MHz |
| Headphone output level | 6.3 mm jack, 2x 100 mW at 32 Ω |
| Image rejection | > 100 dB typ. |
| Sensitivity | -100 dBm typ. |
| Word clock | Input: BNC, 75 Ω; Output: BNC, 75 Ω; Sampling Rates: 48 kHz, 96 kHz |
| Operating relative humidity | Operation: Max. 85% at 40°C (non-condensing); Storage: Max. 90% at 40°C (non-condensing) |
| Transmission method | Digital modulation, “LR” mode Min. frequency spacing for equidistant grid: 325 kHz |
| Latency | Analog Audio Out: 3 ms ; Digital Audio Out: 3 ms (AES/EBU) |
| Audio codec | SeDAC (Sennheiser Digital Audio Codec) |
| Network protocol | IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection |
| Receiver Principle | Double superheterodyne |
| Diversity principle | True bit diversity |
| Encryption | AES 256 |
| Daisy chain outputs | 2x BNC (50 Ω) 0 dB +/- 0.5 dB amplification relative to antenna inputs |
| Receiving channels | 2 |
| Daisy-chained receivers (RF) | Max. 8 EM 6000 units |
| Dante™ (only EM 6000 DANTE) | IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection |
| Power plug | 3-pin, protection class I as per IEC/EN 60320-1 |
| Water Protection Code | The product must not be exposed to dripping and splashing (IP2X) |
