Product Overview

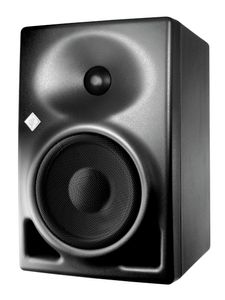

The KH 120 D studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 D represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD ), flexible acoustical controls, analog class-AB amplifiers, various input formats (analog and digital) and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.
The KH 120 D is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.
Powerful titanium fabric dome
Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide
Composite sandwich cone
Long throw bass driver
Two-color + dimmable Neumann logo
Robust metal grille
Large front panel ports
Compact aluminum cabinet (magnetically shielded)
Wide horizontal dispersion
Narrow vertical dispersion
One-piece front panel with no discontinuities
Powerful analog amplifiers with large headroom
Production consistency
4-position bass, low-mid and treble acoustical controls
Wide range input gain and output level controls
New mounting hardware options
Display dimmer
Ground lift
Universal switched-mode power supply (100 … 240 V)
Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry
Analog XLR input
Digital BNC input and buffered BNC output
Lipsync delay (0 … 10/12 frames)
Time-of-flight delay (0 … 400 ms)
