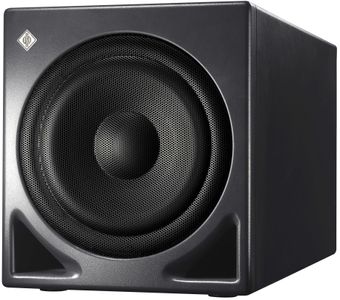

Sennheiser KH 805 Active Studio 10" Metallic Anthracite Subwoofer

Product Overview

Based on the excellent acoustical performance of the KH 810, the KH 805 is the optimal choice to be used in stereo applications, for example in combination with the KH 120 or KH 310.

The KH 805 has a unique 2.1/0.1 Bass manager which enables it to be used in many different applications. There are four routing modes to ensure maximum flexibility. Fourth order crossovers and adaptable acoustical controls allow for seamless system integration, and the bass management function can be remotely controlled

The KH 805 subwoofer is designed to complement our extensive range of monitors, and can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.

Bass extension for loudspeakers down to 18 Hz

Increasing the maximum SPL of loudspeakers by up to 8 dB

Decreasing harmonic and intermodulation distortion of loudspeakers

Reproducing the LFE channel

Reproducing the “Sub” signal of a bass managed multichannel source

Making a Plane Wave Bass Array™ system

Working as an extension for KH 810, KH 870 and KH 805 subwoofer systems

Flexible electronics

2.0/ 0.1 Bass Management for stereo and externally bass managed applications

Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction

Four routing modes on right input connector: -Right channel bass management -LFE to subwoofer only up to 120 Hz -Wide for multichannel systems where the bass management is in the source -Daisy chain for subwoofer arrays

Acoustical controls adapt the subwoofer’s response to the environment -Output level -Low cut -Parametric equalizer -45° step phase control

Larger systems and Plane Wave Bass Arrays™ maybe constructed using the Daisy Chain output

Remoteable electronics (REK 3) for installation convenience, less cabling, and convenience of use

Integrated electronic limiter for amplifier and driver protection

Low heat dissipation amplifier

Robust driver and cabinet

Low frequency extension for main loudspeakers down to 18 Hz

Low distortion magnetically shielded long-throw driver

Reduced bass compression at high SPL from generously proportioned bass reflex ports

Allows main loudspeakers to play louder and with lower distortion

Wooden cabinet with a tough painted finish (anthracite) and high density rubber isolating feet

Excellent self-damping properties leading to minimal cabinet resonances

Cabinet look conforms to the family design
