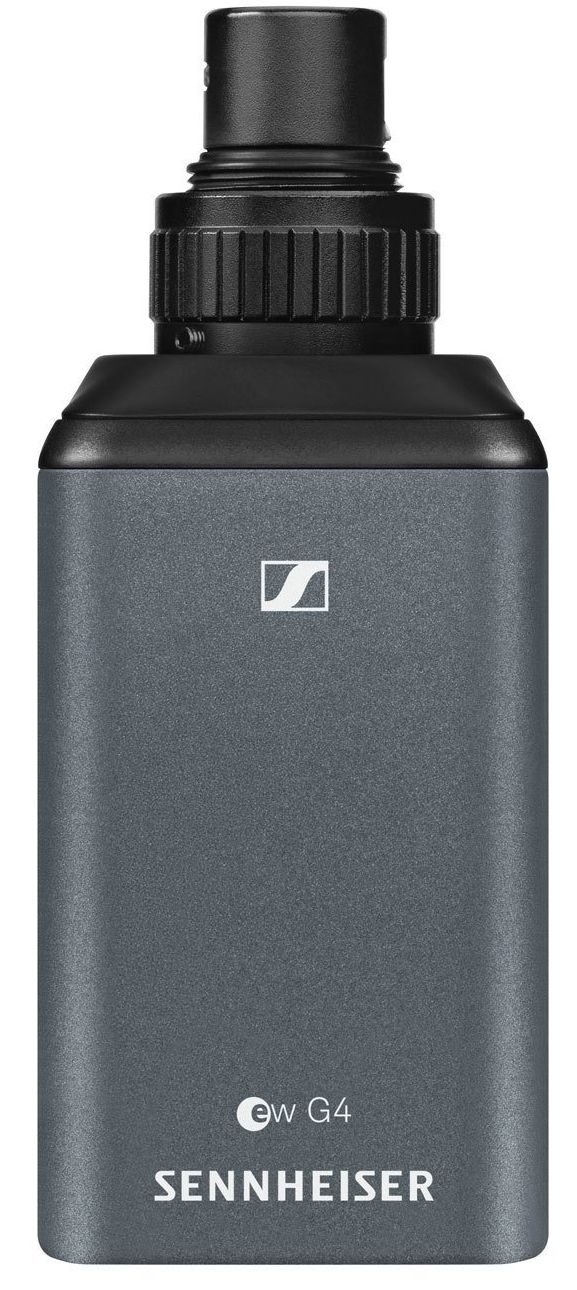

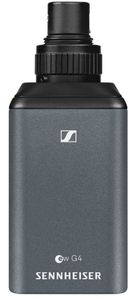

Sennheiser SKP 100 G4-A1 Plug-On Microphone Transmitter

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

Features

• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

What's in the box?

• SKP 100 G4 plug-on transmitter
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet

Technical Data

• Frequency range: 470 - 516 MHz
• Dimensions Approx. 105 x 43 x 43 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion ≤ 0.9 %
• Weight approx. 195 g
• Signal-to-noise ratio ≥ 110 dBA
• RF output power Max. 30 mW
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
• Input impedance 68 kΩ, unbalanced
• Max. Input voltage 3.3 Veff
• Powering 3 V battery / 2.4 V rechargeable battery
• Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response 80 – 18,000 Hz
• Temperature Range -10 °C to +55 °C
• Frequency stability ≤ ±15 ppm
