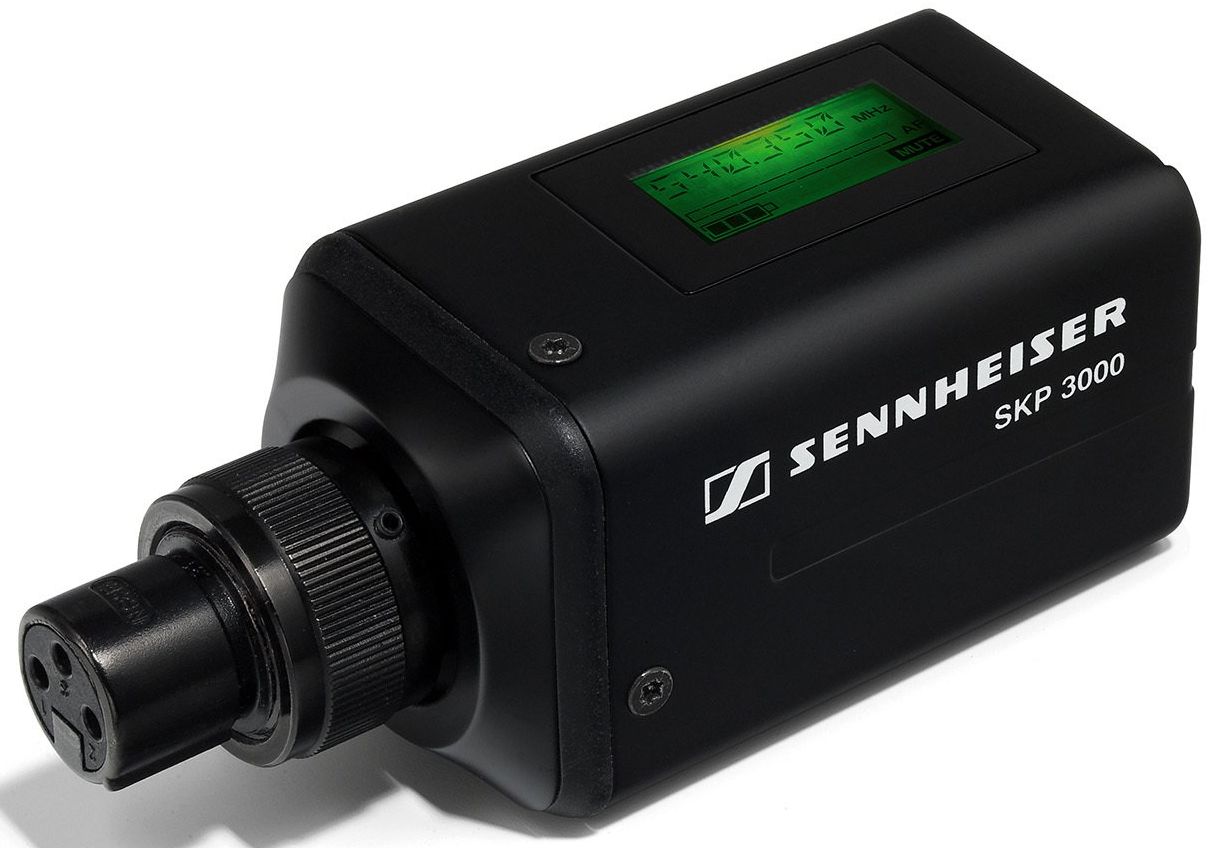

Sennheiser SKP 3000-C Plug-On Transmitter

Plug-on transmitter that turns XLR-equipped microphones into wireless ones. Ideal for ENG, film, and broadcasting. Compatible with all 3000 and 5000 series receivers. Switchable phantom powering. Rugged metal housing.

The SKP 3000 is a miniature plug-on transmitter which enables any cabled microphone to be instantly converted to RF wireless operation - simply by plugging the transmitter onto the microphone connector. The SKP 3000 has an electronically balanced input and 48 V phantom powering for condenser microphones. The transmitter is available in nine frequency variants and is compatible with all 3000 and 5000 Series receivers. It is an ideal choice for ENG applications and an invaluable tool for the broadcast, film and video sound recording professional.

Features

• Nine frequency ranges
• Frequencies tunable in 5 kHz steps
• HiDyn plus compander
• Robust metal housing
• Switchable 48 V phantom powering
• Electronically balanced input
• Backlit display
• Mute function

What's in the box?

• SKP 3000, batteries, user manual

Technical Data

• Frequency response:696 - 732 MHz; 670 - 706 MHz; 576 - 612 MHz; 556 - 592 MHz; 830 - 866 MHz; 786 - 822 MHz; 740 - 776 MHz; 626 - 662 MHz; 518 - 554 MHz
• Dimensions 105 x 43 x 43 mm
• Compander HiDyn plus
• Audio-XLR connector XLR-3
• Weight 805 g
• Signal-to-noise ratio > 115 dB(A)
• RF output power typ. 30 mW
• Switching bandwidth 36 MHz
• Peak deviation +/- 48 kHz
• In compliance with ETS 300 422, ETS 300 445, CE, FCC
• Operating time > 8 h (P48: 5 h)
• Power supply 2 x AA batteries 1.5 V
• Frequency setting in 5 kHz steps
