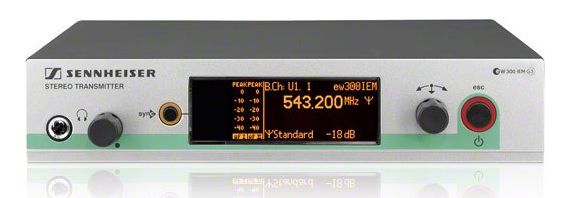

Stereo transmitter for wireless monitoring. 1680 tunable UHF frequencies. Enhanced AF frequency range. Remote-controllable via "Wireless Systems Manager". Sturdy metal housing.Read More
You can only sound better if you hear yourself better. Wireless monitoring is taken to the next level of perfection with the Sennheiser G3 monitoring system. New pass-through sockets for the audio signal enable the audio feed from a console to be routed to other devices in the chain, simplifying setup. The enhanced audio frequency response of 25 to 15,000 Hz means the sound the performers hear is the most realistic and life-like a wireless monitor system has ever had to offer.
Sturdy metal housing
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 16 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of receiver parameter from transmitter
User-friendly menu operation with more control options
Illuminated graphic display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Mute function
Wide range of accessories adapts the system to any requirement
1 SR 300 G3 stereo transmitter
1 GA 3 rack mount
1 NT 2 power supply unit
1 antenna
Operating instructions
General Specs | |
| Product Weight (lbs.) | 2.16 |
| Color Finish Name | Silver |
| Color | Silver |
General | |
| Dimensions | 212 x 202 x 43 mm |
| Frequency response (Headphones) | 25 - 15000 Hz |
| Compander | HDX |
| Audio-XLR connector | 2 x XLR-3 jack |
| Presets | 16 |
| THD, total harmonic distortion | < 0,9 % |
| Weight | 980 g |
| Signal-to-noise ratio | > 90 dB(A) |
| RF frequency range | 516 - 865 MHz |
| Transmission/receiving frequencies | 1680 |
| Switching bandwidth | 42 MHz |
| Peak deviation | +/- 48 kHz |
| In compliance with | 15 mW: ETS 300422, ETS 300454; 100 mW: ETS 301 489-1 / -2; FCC Part 74.861 / CANADA RSS-123 |
| Modulation | FM, MPX-Stereo |
| Antenna connector | BNC |
| Headphone connector | > 100mW (32 Ω) |
| Input voltage range | + 22 dBu max |
| Frequency range | 566...608 MHz / Power supply unit US |
